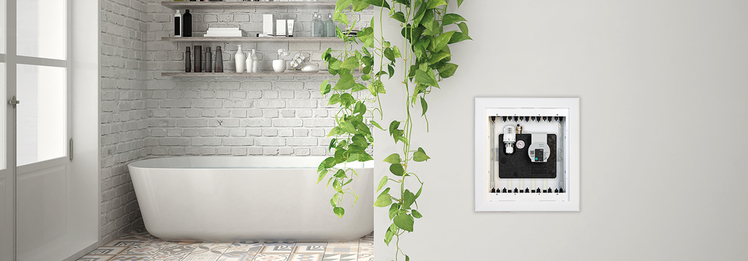

Thome Minishunt Plus

- underfloor heating regulation in a single room

Thome Minishunt Plus is the ideal choice for connecting a small underfloor heating system to an existing radiator heating system for both 1- and 2-string systems. The Thome Minishunt Plus is used for mixing the water, where the heat source produces a higher flow temperature than demanded by the underfloor heating. The built-in main water flow maintains a steady water temperature of max. 45°C.

A thermal protection interrupts the current if the flow temperature exceeds 50°C. The system resets automatically.

The Thome Minishunt Plus is easily attached to the existing heating installation. It is delivered with an energy-efficient pump with power consumption from just 3W and a 3-pole cable with a length of approx. 1½ meter to be connected to the control unit.

All 4 pipes being connected at the bottom with a C/C of 50 mm in combination of the very compact design incl. a 16 mm thick insulation jacket allows installation at very narrow place. The insulating jacket is also part of the packaging to minimize packaging waste.

The sturdy design and great body mass efficiently eliminate vibrations from the circulation pump making the Thome Minishunt Plus extremely silent and suitable for mounting on sound sensitive walls.

The Thome MiniShunt Plus is available in 3 variants:

• Thome Minishunt Plus with capillary sensor

• Thome Minishunt Plus with basic wireless thermostat

• Thome  Minishunt Plus with advanced wireless thermostat and heating element

	Thome  Minishunt Plus with capillary sensor Roth Minishunt Plus with manual thermostat with a 5m capillary sensor adjustable in the range 6 to 28 ° C.
Thome  Minishunt Plus with basic wireless thermostat Thome  Minishunt Plus with actuator, wireless room thermostat and electronic controller featuring display and touch buttons for easy setting of temperature. In addition, temporary overriding of the entered comfort temperature and locking of buttons for accidental operation are possible as well.
	Thome  Minishunt Plus with advanced wireless thermostat and heating element Thome  Minishunt Plus with actuator, wireless room thermostat, electronic controller and an electric 500W heating element as a cartridge. In addition to the above, this version features the option of turning on comfort heating during the Summer, where the heating is normally turned off.

Accessories:

Thome  wireless receiver for Minishunt Plus Receiver for wireless control system of Thome Minishunt Plus Power cord included	Thome  advanced wireless room thermostat for Thome  Minishunt Plus 2 way communication with wireless receiver Batteries included	Thome  wireless room thermostat for Thome Minishunt Plus 2 way communication with wireless receiver Batteries included

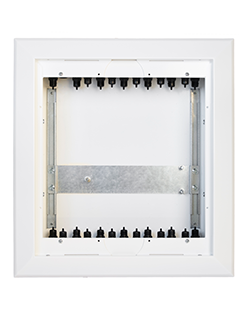

Thome  manifold cabinet For waterproof installation of Thome  Minishunt Plus Size: 419 x 350 x 108 mm (B x H x D) Excl. frame: +18 mm depth	Thome  E heater upgrade element, Plus Electric heating element 500 W for Thome  Minishunt Plus For summer setting with no heat source Temperature sensor cable included.	Thome  Actuator 230 V For underfloor heating.
