Ease and comfort are the advantages of a wall heating system. Through the radiant heat, the actual room temperature can be lowered by one or two degrees and thus a lot of energy is saved. With a wall heating system, convection (room air flow) is omitted and therefore also raising dust (suitable for allergy sufferers). The connection to common heating systems like underfloor heating, radiators etc. is possible.
Advantages:
- rapid heating-up of the wall heating
- comfortable room climate
- pleasant surface temperature, max. 33° C
- low average heating temperatures of 35 to 45° C
- use as a heating and cooling element in the wall and ceiling
- optimum utilization of condensing technology and renewable energy source
  (solar energy, heat pump) due to low return temperatures
- pre-fabricated modules, fast assembly
- architectural freedom of design
- can be used in both dry stud walls and solid walls
- ideal for old-building renovation, loft conversion and pitched roofs
- after completion, immediate processing of the wall surfaces possible
  (e.g. roll plaster, wall paper, tiles)
Features:

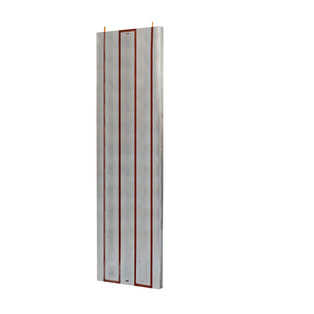

- heat output per element: 135 watts (at 33° C flow, 30° C return,
  20° C room target temperature)
- cooling output per element: 100 watts (at 16° C flow, 18° C return,
  26° C room target temperature)
- dimensions(H x W X D) :   2,022 x 590 x  52mm         ( 1,822 x 590 x  32mm  optional)
- heating surface: 1.19 m²
- weight: 5 kg
Pressure loss:
- 1 element (40 l/h): 2.5 mbar
- 2 elements (80 l/h): 10.5 mbar
- 3 elements (120 l/h): 53 mbar
- 4 elements (160 l/h): 115 mbar
- 5 elements (200 l/h): 213 mbar
- installation of maximum 5 elements in a row (otherwise high power input of
  the pump)
