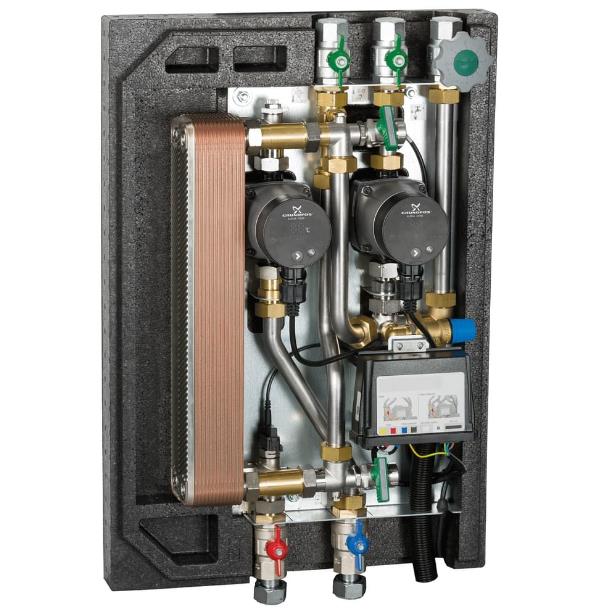

The TacoTherm Fresh Mega Connect fresh hot water station is used for heating drinking water on demand in accordance with the cyclical principle in conjunctin with a buffer storage tank for existing and new heating systems, solid-fuel boilers, heat pumps and solar systems. The station replaces the storage of hot drinking water in an additional storage tank, and thus provides a high degree of protection against legionella because stagnation water is avoided.

Properties:
Material:
Base plate: galvanised sheet steel
Rear panel and hood: EPP design insulation
Valve housing: brass
Pipes: DN 20 stainless steel 1.4404

On the primary side:
Max. pressure: 10 bar
Max. operating temperature: 95°C

On the secondary side with drinking water approval:
Max. pressure: 9 bar
Max. operating temperature: 85°C
